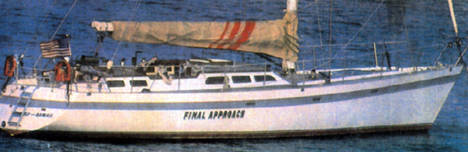

60'  Lidgard Performance Cruiser

Builder/Designer
  Builder: Lidgard
  Year: 1986

Dimensions
  LOA: 60'
  Beam: 15'
  Draft: 10'
  Displacement: 38,500 lbs
  Hull Material: Cold-Molded
  Hull Color: White

Sails
  Rig: Masthead Sloop
  Sail No.: 29209
  Sail Area: 1750 Sq. Ft.

Engines
  Engine: 135hp Perkins diesel
  Engine Model: 6-354
  Cruising Speed: 8 kts
  Max Speed: 10 kts

Tankage
  Fuel: 200 gal
  Water: 500 gal
  Beer: 800 gal

Accommodations
A large sail and storage area forward is accessible from the crew quarters below and on deck through a large hatch. Next aft below decks is the crew quarters with 4 upper/lower berths with lee cloths, 3-drawer dresser with counter space, mirror and privacy curtain. Starboard guest stateroom has athwartship double and dresser, mirror, shelves and lockers. Enclosed head aft of crew quarters to port with separate shower room, storage area, vanities and portholes. Spacious salon is well lighted and provides 7'2" headroom. Long settee to port with lockers and shelves above and behind. Nav area and chart table are next facing aft. To starboard is L-shaped dinette with additional seating for folding chairs and more lockers above dining area. Top and side access refer is located next to galley entrance aft of the dinette to starboard. Companionway is centerline forward of the engine compartment. Amidship guest stateroom with upper/lower single berths offers access to the engine area. In-line galley to starboard also has engine access and is located in the passageway to the owner's private stateroom which has double berth, separate shower room to starboard and enclosed head. The companionway access from here exits to the helm whereas the main companionway enters through the salon area from a center cockpit. The interior features teak and kauri wood for a very warm and comfortable environment. Wood cabin soles. Berber floor rugs. Fans in every cabin.

Galley Equipment
4-burner propane stove/oven; microwave; garbage disposal; pressure water system; 2 S/S sinks; tankage in salon cabin sole; 2 refrigeration systems, (AC and engine-driven); deep freeze; hot water system from shore power or engine-driven

Electronics and Navigation Gear
4 compasses; Raytheon radar; Icom VHF; SSB; B&G Hornet speed/distance logs; TV and stereo; Robertson autopilot; Magnavox satnav interfaced with B&G instruments; depth sounder; wind speed indicator; weatherfax

Electrical System
House batteries are 200-amp/hour 24-volt gelcels; 2 engine starting batteries are 24-volt with parallel switch; 2 radio and nav station gelcel 12-volt batteries; automatic battery charger; shore power cord; static inverter (Heart Interace); 110V AC/12V DC/240-volt AC power.

Sails & Rigging
Equipped for cruising and racing; S/S wire rigging; 13 self-tailing winches; hydraulic backstay; hydraulic boomvang; reaching strut; 2 spinnaker poles; hydraulic outhaul, flattener and babystay. SAILS INCLUDING heavy #1, light mylar genoa, #3 with battens, #4, dacron main with 3 reefs, storm foresail, trisail 2.2 chicken chute spinnaker, 1.5 spinnaker, .75 spinnaker and extra 1.5 spinnaker. 76-foot mast with triple spreaders, roller furling headstay with interchangeable groove stays, 2 main halyards, 2 spinnaker halyards, 2 genoa halyards, staysail halyard, topping lift and foreguy.

Deck and Hull Equipment
Bow pulpit/rails; stanchions/lifelines; teak decks; saltwater washdown system; 10' Narwail dinghy; electric windlass; fenders and lines; 12 life jackets; nav lights; MOB pole; 2 horseshoe rings; strobe; EPIRB; (2) 6-man life rafts; 8 harnesses; 3 anchors; all safety gear for crew of 10; complete boat awning; 3 hatch air scoops.

Additional Equipment
Manual fire extinguishing system; manual wheel steering; emergency steering; autopilot functions as additional steering; 7 S/S watertanks; 2 fuel tanks (interconnected and selectable); chain-to-cable steering on quadrant; Borg Warner transmission; Max feathering prop
